Customizable Waste Gas Purification Adsorption Column for Industrial Applications

Name: Customizable Waste Gas Purification Adsorption Column for Industrial Applications
Brand: YITE
Price: 3 USD

Wholesale Customizable Waste Gas Purification Adsorption Column for Industrial Applications from china suppliers

Condition : New

Applicable Industries : Manufacturing Plant, Farms, Construction works , Energy & Mining

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pump, Fan

Place of Origin : Hebei, China

Brand Name : YITE

Purify Efficiency : 99.99%

Warranty : 1 Year

Weight (KG) : 1500 kg

Material : polypropylene

name : spray absorption tower column

pump out pipe diameter : 50mm

pump in pipe diameter : 40mm

Usage : waste gas purification

Certification : ISO9001

Motor power : 2.2 Kw

ODM : yes

OEM : yes

Customization : accept

Packaging Details : 1.The main part of the Adsorption column is loaded into the container
2.Spare parts are packed by wooden box.
3. necessary protection for insulating layer, carton packing for filter bags

Port : Tianjin port

Supply Ability : 500 Piece/Pieces per Year

Price : $3,410.00/pieces 1-2 pieces

MOQ : 1

Contact Now

Customizable Waste Gas Purification Adsorption Column for Industrial Applications

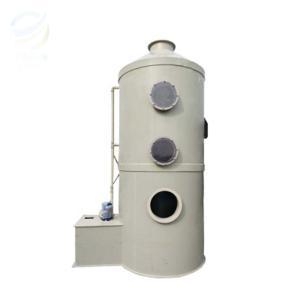

Wet scrubber also called spray tower, purification tower, spray column. It is a new type of industrial waste gas treatment and processing equipment.
It is widely used in the pretreatment of industrial waste gas treatment, odor removal, dust removal.

This product are widely used in chemicals, chemical preparations, pharmaceutical factories,

laboratories, metallurgy, light industry, food, new energy, electroplating, pickling, petroleum,
machinery, electricity, etc.

1.Dust removal effect is good: as a result of mechanical cutting and standardized production, perpendicularity and water film can meet the design requirements, and the dust removal effect is better.

2.Long service life: the inner cylinder is made of corrosion
resistant and wear-resistant granite (ceramic) to ensure more than 20 years.

3 .Use the operating environment clean: because of the whole structure, no leakage, always have a clean, hygienic working environment.

The exhaust gas is introduced into the purification tower by the wind pipe. Through the packing layer, the exhaust gas and the absorption liquid are fully exposed to the absorption and neutralization reaction of the gas-liquid two phase. After the exhaust gas is purified, the fan is discharged into the atmosphere by the dehydration of the mist removal plate and the mist eliminator. The absorption liquid is pressurized by the pump at the bottom of the tower and then sprayed down at the top of the tower. Finally, it is recycled to the bottom of the tower for recycling. The purified acid mist exhaust gas is lower than the national emission standard.

Model	Air volume M3/h	Dimension mm Φ * Height	Pump power Kw	Fan power Kw	Inlet/outlet mm	Spaying layer
YT-04PL800	2000~3500	800*3000	1.1	3	300	2
YT-04PL1000	3000~5000	1000*4000	2.2	4	300	2
YT-04PL1200	5000~7000	1200*4500	2.2/3.0	5.5	400	2 or 3
YT-04PL1500	7000~10000	1500*5000	3.0	7.5	400	3
YT-04PL1800	11000~15000	1800*5500	3.0	11	500	3
YT-04PL2000	15000~19000	2000*6000	4.0	22	500	3
YT-04PL2200	19000~23000	2200*6500	4.0/5.5	30	600	3
YT-04PL2500	23000~30000	2500*6500	5.5/7.5	37	600	3
Remark	Estimated data, should be calculate according to specific working condition.	The height can be adjusted according to the working condition. The higher, the better.	Can be adjusted according to the nozzle kind and quantity.	Just for reference. Can be adjusted according to the device in the system	Can be customized to be suitable for the current pipeline.	Can be customized according to the height.

According to waste gas type and temperature, we can use PP(Polypropylene)FRP(Glass fiber reinforced plastic), mild steel, stainless steel as the wet scrubber’s body, The materials of the corresponding internal accessories will also change. For example, there are four kinds of grid plates: PP, FRP, carbon steel and stainless steel, and high surface area materials include PP, ceramic rings, and stainless steel Raschig rings. The nozzles are available in stainless steel, PTFE (polytetrafluoro-ethylene) and titanium alloy materials.

1.Small footprint and convenient installation.

2.Low water consumption and power consumption.

3.Corrosion resistance, non-wear and long service life.

4.Reliable operation of equipment, simple maintenance and convenience.

Our Advantages

FAQ

Q1.Are you a factory and trading company?
A: We are a factory

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need

Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items ,
transportation ways and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they comefrom.
